MONILOG®

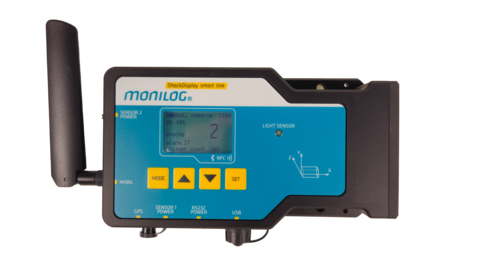

ShockDisplay smart LINK

Extremely robust logger, fully equipped real-time tracker with highly sensitive shock sensors for an exact proof of transport quality in the web portal and status report via Bluetooth.

Usage of the MONILOG® Connect App
360° view
PDF Download
Product description
Technical data
×
×
Radio

RADIO

Shock

SHOCK

Inclination

INCLINATION

Vibration

VIBRATION

Temperature

TEMPERATURE

Humidity

HUMIDITY

Pressure

PRESSURE

GPS Tracking

GPS TRACKING

Light Incident

LIGHT INCIDENT

  • Extremely robust shock recorder with realtime tracking
  • Registers all mechanical shock events and stores the 100 largest with signal progress
  • Measures direction, strength, time, duration, minimum and maximum of the effect
  • 24/7 data access in MONILOG® web portal
  • status report with Bluetooth or NFC
  • GPS receiver for precise positioning and Inclination measurement on board
  • Easy operation, display, alarm function, long operating time
  • external sensors for temperature, air humidity and pressure
  • Tamper-proof, multi-level password protection
  • Conformity with all relevant norms and standards for measurement of transport shocks

Product description:

  • Online tracking data logger fully equipped plus up to 2 independent external sensors. Ideal for monitoring complex transports and for long-term checking of large plants
    and machines. Power transformers, generators, turbines or switchgear have a highly precise manufactured and sensitive inner life.
  • Highly sensitive shock sensors record all mechanical shock events and store the 100 largest with the direction, strength, time, duration, minimum and maximum of the eff ect.
  • Also inclinations, such as the rolling of a ship, are measured.
  • A complete signal progressionis documented for each shock and inclination event.
  • The ShockDisplay smart LINK determines the exact position via an integrated GPS receiver.
  • With an external sensor, further data such as temperature, relative humidity and absolute air pressure can be recorded in parallel – important for transport under protective gas or for temperature-sensitive and moisture-sensitive transport goods.
  • 24/7 data access in the MONILOG® web portal and convenient readout of the status report using the MONILOG® Connect app.
  • Tampering is excluded by means of a multi-level password protection, internal memory support, checksums and logging of all processes relevant for the measurement data acquisition.
  • With the device, the causes of transport damage can be precisely determined over very long periods of time.
  • The ShockDisplay smart LINK meets all standards and guidelines for shock measurement and transport monitoring.

Technical data:

Housing
Aluminium, hard-anodized • degree of protection IP67; weight: 1.07 kg including alkaline batteries • 42 g each magnetic base; size: 198 x 100 x 44 mm (D x W x H) • Ø 32 x 7 mm² (small magnetic base); surface mounting (3-point screwed connection recommended), magnetic foot mountings optiona
Operation and storage conditions
-20°C to +60°C with alkaline batteries; -40°C to +85°C with lithium batteries
Data memonry / Time
Data receipt for a minimum of 10 years, independent of battery status; 32 MB flash parameter and data storage; date/time as world time UTC, supported by the internal battery, exchange at the manufacturer after 6 years needed
Voltage supply
Internal: 2 batteries type D or R20 replaceable; Alkaline batteries (2 x 1.5 V, 16,000 mAh) • lithium batteries (2 x 3.6 V, 17,000 mAh) • Operating time up to 3 years, typically 1 year (for alkaline batteries, all options active with relevant settings); External: Mini-USB AB 5 V • external voltage supply (6 - 24 V, < 15 W) via IP67 connector (to RS232 / Power)
Mobile communications
Frequency ranges: LTE Cat 1, globally compatible with LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE • Measurement data sent worldwide by e-mail and/or visualisation in the "MONILOG® web portal" Dual SIM card: Accepts 1.8 V or 3 V micro SIM card • Alternative use of an embedded SIM
Bluetooth
Bluetooth Low Energy BLE 5.2 • Status report can be read out with smartphone and free "MONILOG® Connect" app • Save and send the PDF report by email
Interfaces
USB 2.0 Client (Mini-USB AB) • RS232 via IP67 five-pole connector (for optional use) • Analog input: connection for analog pressure sensor
GPS Positioning
32 satellite channels (GPS, SBAS, BeiDou, QZSS) • SMA socket for connection of an external active antenna 50 Ω 3 to 30 mA, 3 V (rod or cable antenna) • 25,000 data records, tolerance 100 m
Display and operating elements
illuminated LCD display, indication of: date, time, room vector, integrated shock strength and duration, minimum, maximum, number of shock and inclination events; multilingual and password-protected menu navigation
Acceleration and shock
14 g (3 axes, 3,200 Hz, tolerance ± 0.32 g) • configurable digital signal filtering • when the registration threshold is exceeded, shock curves are recorded • the 500 highest shock curves are stored • optional: 30 g, 1,600 Hz, tolerance ± 0.6 g or 60 g, 1,600 Hz, tolerance ± 1.2 g)
Inclination Measurement
Inclination calculation from static acceleration • when the registration threshold is exceeded, up to 640 inclination curves (12 Hz, 8 s, tolerance ±3°) are recorded according to the event • additionally continous inclination recording adjustable in interval between 1 minute and 24 hours • 200,000 data records
Temperature
-40°C to +85°C • tolerance ±0.5 K • 200,000 data records
Relative humidity
0% – 100% RH • tolerance ±2% RH (on 20 ... 80% RH) • 200,000 data records
Light
0 lx - 65,000 lx • tolerance ±15 % • 200,000 data records
Air pressure
260 – 1,260 mbar • ±2 mbar tolerance (optional: 10 – 2,000 mbar, ±4 mbar tolerance) • 200,000 data records • when connecting an external pressure sensor, the external pressure is stored
Conformity
Device approval according to CE, UKCA; shock evaluation according to DIN EN 15433-6, RoHS, WEEE; Frequency analysis according to DIN EN 13011; use according to IEEE C 57.150-2012
Programmable parameters
Shock registration thresholds x, y, z • minimum shock duration, shock strength • limit for inclination, temperature, humidity, pressure • alarm indication on the display • intervals for continuous measurement of GPS, inclination, temperature, humidity and pressure • password for reading, configuring, On/Off switching • Start/Stop time for the data recording
