MONILOG®

MicroShockDetector plus

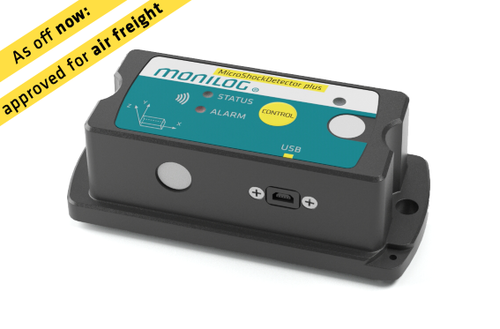

Small lightweight shock data logger with communication via USB and NFC. Also approved for air freight. Status report can be read out with smartphone and free app.

App Download
Usage of the MONILOG® Connect App
360° view
PDF Download
Product description
Technical data
×
×
Radio

RADIO

Shock

SHOCK

Inclination

INCLINATION

Vibration

VIBRATION

Temperature

TEMPERATURE

Humidity

HUMIDITY

Pressure

PRESSURE

GPS Tracking

GPS TRACKING

Light Incident

LIGHT INCIDENT

  • Registers the 200 largest shock events in the X, Y, Z direction
  • Saves up to 10 curve progressions of the largest shocks
  • Intelligent signal fi ltering and evaluation
  • Indicates limit value overruns with alarm LED
  • Continuous recording of temperature, humidity, air pressure, light
  • Intuitive operation, extremely long and independent operating time
  • Communication via USB and NFC
  • Easy confi guration and evaluation with license-free PC software
  • Status report can be read out via NFC with smartphone and free app
  • Confi gurable recording time over start-stop time
  • Easy mounting with adhesive pad, screws or magnetic feet

Product description:

  • High-sensitivity devices, e.g. large, superconducting magnets in medical technology, need a safe and demonstrable protection during transport or during storage.
  • The compact MONILOG® MicroShockDetector plus provides the best services.
  • It is smaller than a smartphone and weighs only 180 grams.
  • The measuring device reliably stores all data on shocks of every dimension, assigns them to acceleration classes, provides curve progressions and reports alarms as soon as limit values are exceeded.
  • In addition, temperature, humidity, air pressure and light are monitored.
  • The switch-on time of the MicroShockDetector plus is easy to configure.
  • All data can be read out via the USB port, transferred to a PC and evaluated.
  • There is also an option to read out the status report with a smartphone via NFC.
  • The free app sends the read status report as a PDF file by e-mail.
  • The device is quickly installed and dismantled with adhesive pads, screws or supplied magnetic holding feet.
  • Due to the good economic and ecological parameters, the data logger can also be used only once.

Technical data:

Housing
Aluminium, hard-anodized • degree of protection IP67; weight: 1.07 kg including alkaline batteries • 42 g each magnetic base; size: 198 x 100 x 44 mm (D x W x H) • Ø 32 x 7 mm² (small magnetic base); surface mounting (3-point screwed connection recommended), magnetic foot mountings optional
Operation and storage conditions
-40°C to +65°C, max. 98% rel. humidity
Data memonry / Time
Receipt of measuring data independent of battery status for a minimum of 10 years
Display and operating elements
1 button for status indicator, ON/OFF switching with password protection
Temperature
-40°C to +65°C ±1 K, 100,000 measurement values
Relative humidity
0% to 100%, tolerance ±3,5% (at 20% to 80% relative humidity), 100,000 data records
Light
0 lx - 65000 lx ±10%, 100,000 data records
Air pressure
260 - 1260 mbar ±2mbar, 100,000 data records
Conformity
Device certification according to CE, UKCA, ISED, FCC, RTCA/DO160G, RoHS, WEEE Use according to IEEE C 57.150-2012
Programmable parameters
X, Y, Z registering threshold, X, Y, Z alarm threshold, minimum shock duration, measurement interval for temperature, humidity, air pressure, light Start-Stop time (switch-on time period), password protection by means of free Windows and Android software
Shock Measurement
200 data records with the highest space vector amplitude, of which the 10 highest values with a curve-plots over 4 s, resolution 2 ms
Connections
Mini USB 2.0
Power Supply
1 replaceable lithium cell, 3.6 V type LR06 (AA, Mignon), lithium content ~0.7g runtime typically 3 years in switch-on time period (depending on the device configuration)
Acceleration sensor
3D-MEMS, measuring range ±14 g, 10 mg resolution, accuracy: ±(0.2g and 2% measurement value), registering threshold from 0.25g, lower limit frequency 1 Hz, upper filter limit frequency 25 Hz fixed-adjusted
Shock classification
Subdivision of shocks according to space vector amplitude into classes, number of shocks not limited >0.25 g, >0.5 g, >1 g, >1.5 g, >2 g, >3 g, >4 g, >5 g
Indication
2 LEDs for status and alarm limit-value overshooting
NFC
Status report can be read out via NFC with smartphone and free app “MONILOG® Connect” Save and / or send the PDF report by e-mail
Dimensions
106x48x33 mm (LxWxH), 126x48x40 mm (LxWxH with magnetic feet)
Weight
approx. 172 g (258 g total if mounted on magnetic feet)
Protection type
IP 67
